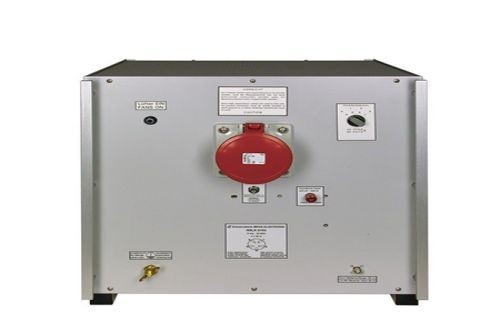

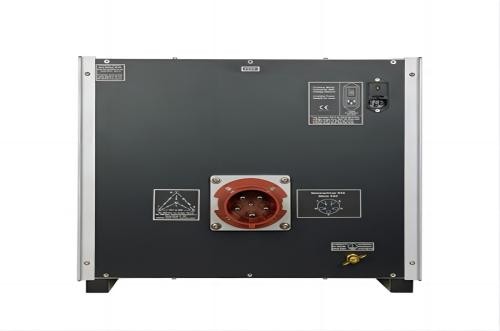

NSLK 8163 人工电源网络
4*63A三相人工电源网络，多用于民品9kHz-30MHz的传导骚扰测试。
- 产品介绍
- 技术参数
- 资料下载
-
Topology: V-LISN Frequency Range: 9 kHz - 30 MHz Pre-filter choke: 250 µH Impedance simulation: 50 Ω || (50 µH + 5 Ω) Max. continuous current CEE: 4 x 63 A max. Voltage: 400 / 700 VAC
630 VDCSupply cable: CEE plug (IEC 60309) Connector for EuT: CEE socket (IEC 60309 3L+N+PE 63 A) Connector for "artificial hand": 4 mm laboratory socket with screw terminal 6 mm,
not removableConnector to EMI-receiver: BNC socked, 50 Ω Length: 650 mm Width: 450 mm Height: 480 mm Weight: 40.8 kg Standard: CISPR 16-1-2
